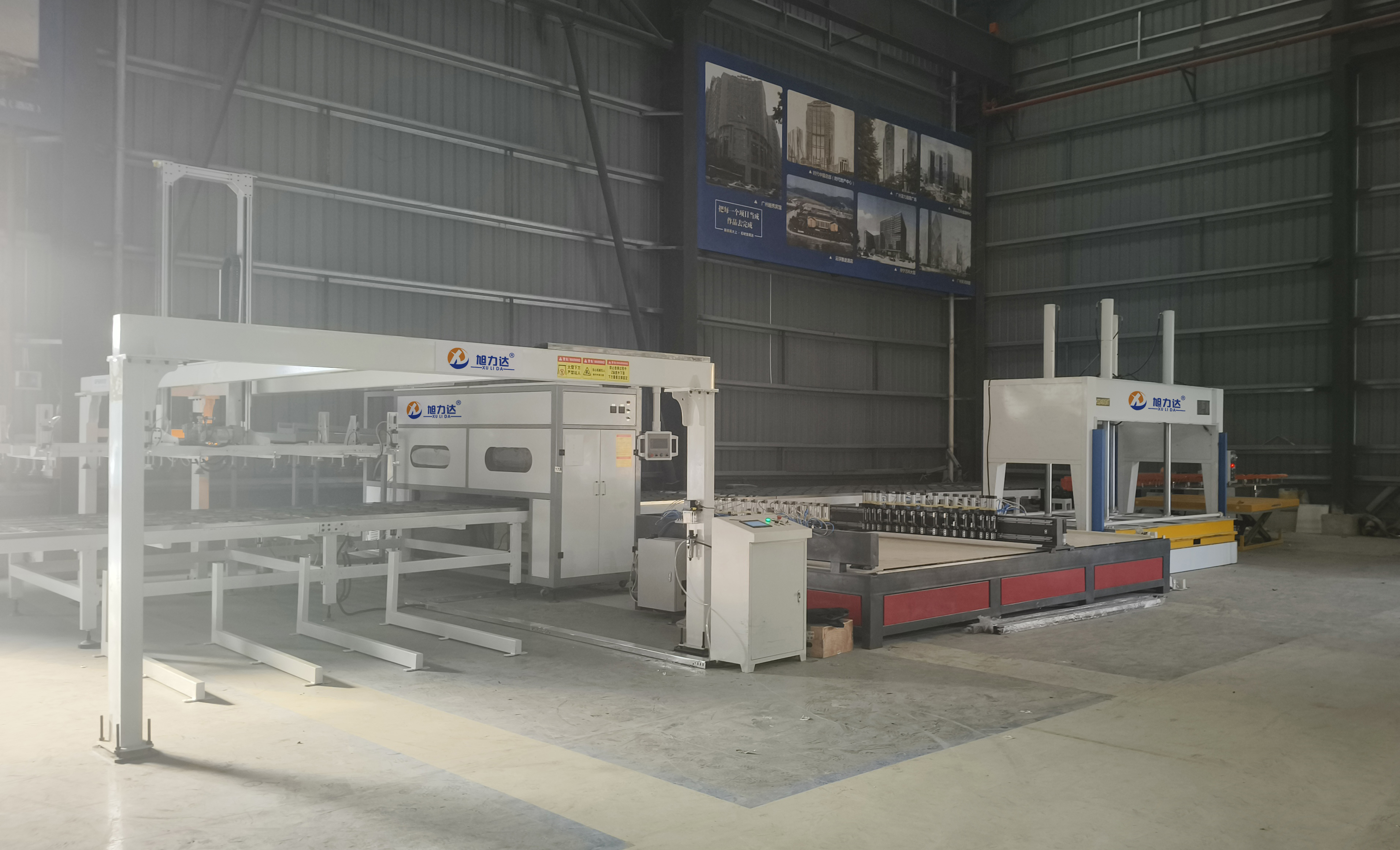

I. Equipment Included in the Adhesive Lamination Line

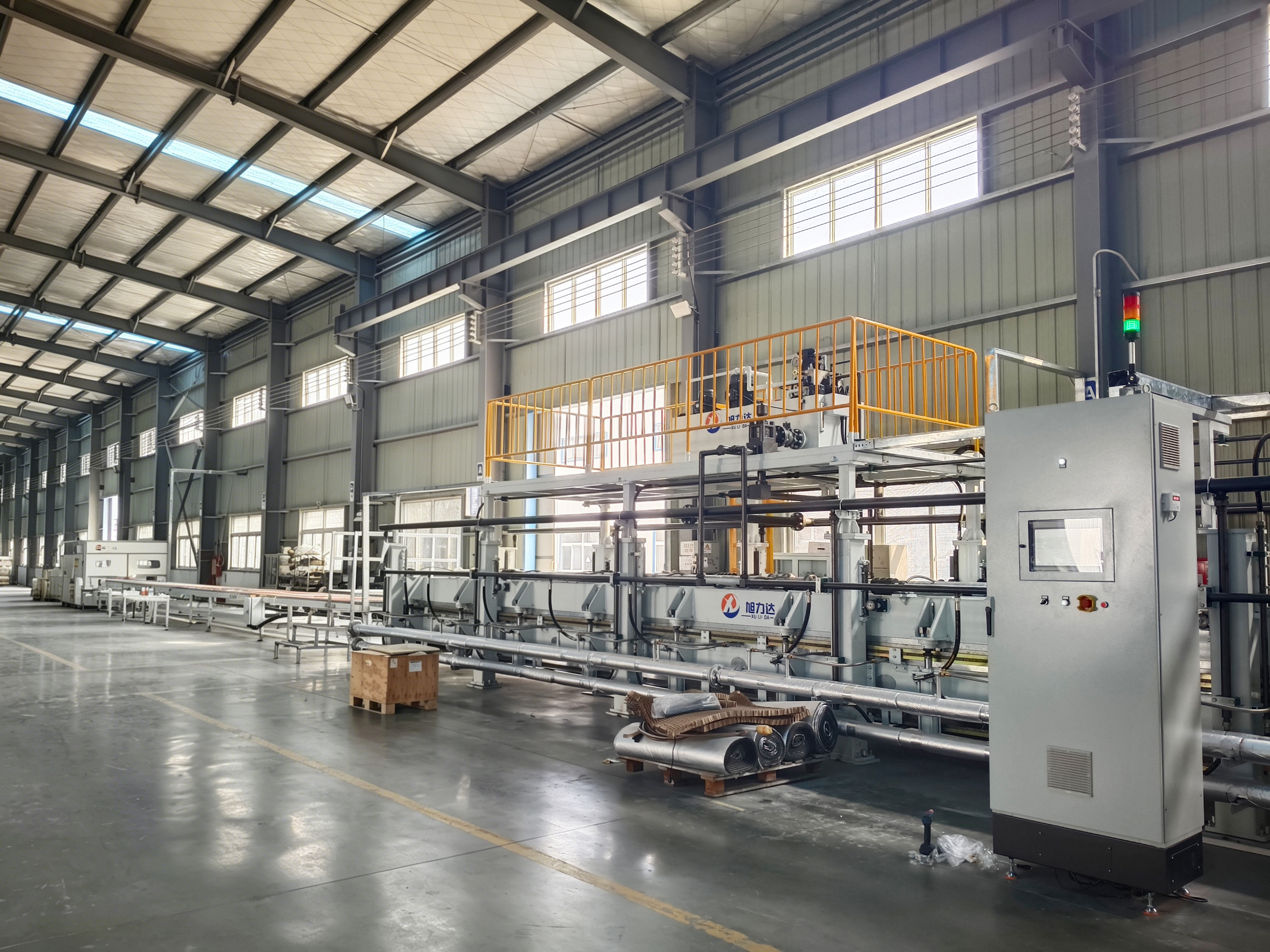

**Fully Automatic Curtain Coater (Core Adhesive Application Unit)**

Cantilever, gantry, or dual-system curtain coating units handle the precise mixing and automatic application of two-component (A/B) adhesives. They ensure a uniform, controllable adhesive layer and are compatible with polyurethane and epoxy structural adhesives.

**Automatic Feeding & Conveying System**

Features automatic panel loading and constant-speed transport. Photoelectric positioning ensures precise coating width and length while preventing panel misalignment.

**Cold Press Lamination Machine**

Rapidly compresses panels after coating with uniform, stable pressure. No high heat is required; the process ensures strong bonding without delamination or bubbling. Ideal for insulation panels and honeycomb panels.

**Automatic Stacking / Unloading Station**

Automatically unloads and stacks finished panels, minimizing manual handling and ensuring a seamless, continuous production flow.

**Auxiliary Equipment**

Includes automatic adhesive mixing tanks, solvent cleaning systems, air compressors, dust removal units, and an integrated electrical control console. Optional modules for automatic edge trimming and drying can be added as needed.

II. Applicable Panel Types

Aluminum honeycomb panels, SPC wall panels, refrigerated truck body panels, sunroom insulation panels, cleanroom partition panels, wood veneer panels, sound-absorbing/acoustic panels, fire-resistant composite panels, etc.

III. Advantages of the Complete Adhesive Lamination Line

**Full Automation & Labor Savings**

An integrated assembly line covering loading, coating, lamination, and unloading. The entire line requires only one operator, replacing the need for multiple workers to manually apply adhesive and press panels, thereby significantly reducing labor costs.

**Controllable Adhesive Usage & Material Savings**

The curtain coater utilizes servo-driven precision control to minimize errors and eliminate adhesive overflow or pooling. It saves 15%–25% of adhesive compared to manual application, significantly lowering material costs over long-term production.

**Consistent Product Quality**

Ensures uniform adhesive thickness and consistent bonding strength after cold pressing. Eliminates issues such as weak adhesion, air bubbles, or edge separation, resulting in flat, high-quality finished products and a significantly higher yield rate. Customizable Production Lines

Custom-engineered to suit workshop dimensions, panel widths, and daily output requirements. Options include single/dual-station adhesive application, extended conveyors, parallel cold-press configurations, and extra-wide models; supports dual-system adhesive supply for switching between two types of adhesives.

24-Hour Continuous, Stable Production

Features thickened, corrosion-resistant stainless steel adhesive lines, imported electrical components, and wear-resistant seals; designed for easy maintenance and high-volume factory production.

Simple and Easy to Operate

Integrated touchscreen interface allows one-touch saving of parameters such as panel thickness, feed speed, and adhesive volume; operators can work independently after brief training; includes built-in alarms for low adhesive levels, leakage, and system faults.

IV. Daily Maintenance Points for Adhesive Lamination Equipment

At the end of each production day, the automatic solvent cleaning cycle must be run for adhesive lines, the mixing head, and application nozzles to prevent A/B adhesive from curing and clogging the system.

Daily cleaning of residual adhesive and debris from conveyor and cold-press surfaces; inspection of lines for leaks.

Weekly lubrication of guide rails and drive chains; cleaning of metering pump filter elements and removal of dust from the electrical control cabinet.

Monthly disassembly and soaking/cleaning of adhesive application components; replacement of worn seals; calibration of adhesive mixing ratios.

For long-term shutdowns: drain all adhesive, seal lines with solvent, and apply anti-rust treatment to metal components.

V. Applicable Industries

Vehicle body/box manufacturing, thermal insulation building materials, decorative panels, cleanroom equipment, doors/windows/sunrooms, acoustic insulation materials, and fire-resistant panel processing plants.
